Products Description
| Name; geomembrane |
| Length; 1-6m |
| Thickness; 0.3 -2 mm |
| Material; HDPE, LDPE, PVC, LLDPE |
| Color; Black, white, blue, customized products can be supported according to customer needs |
Geomembrane is a high-performance, polymer-based waterproofing material crafted from premium-grade high-density polyethylene. Utilizing advanced manufacturing techniques such as triple-layer coextrusion, film-blowing, or double-layer pressing and rolling, this material delivers exceptional strength, durability, and resistance to environmental stressors.
Key Features:
l Superior Strength: Engineered to withstand high tensile and puncture forces, ensuring long-term reliability.
l Chemical Resistance: Highly resistant to a wide range of chemicals, making it ideal for harsh environments.
l UV Stability: Designed to endure prolonged exposure to sunlight without degradation.
l Flexibility: Adapts to uneven surfaces and terrain, providing seamless coverage.
l Environmental Safety: Non-toxic and environmentally friendly, suitable for sensitive applications.
Applications:
HDPE Geomembrane is a versatile solution for a wide range of industries and projects, including:
Environmental Protection:

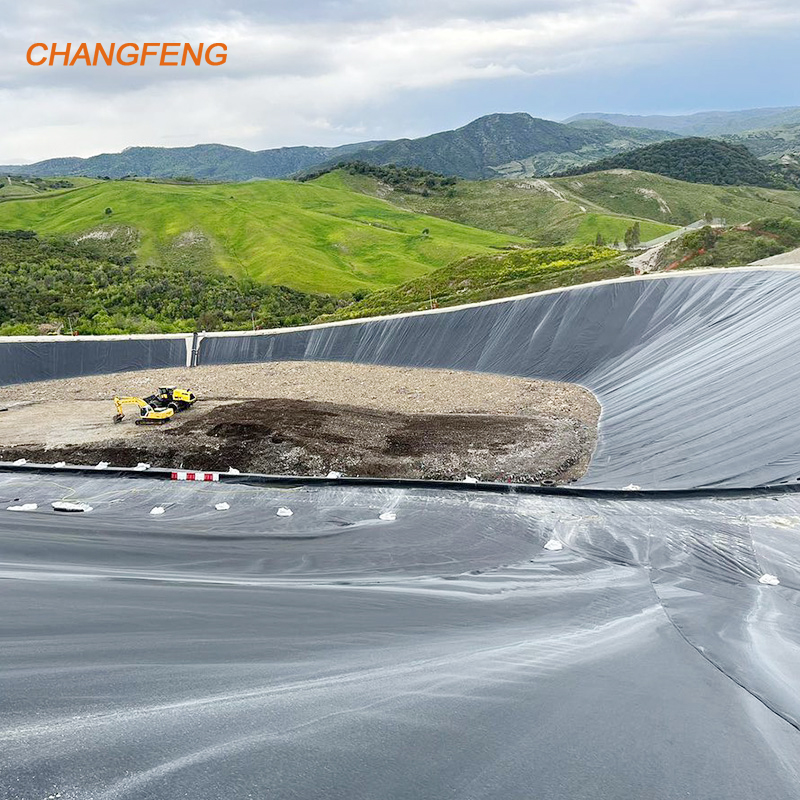

Landfill liners and caps for waste containment.
Sewage and wastewater treatment facilities.
Hazardous material storage and disposal sites.
Water Management:
Reservoirs, dams, and canals for seepage control.
River and lake rehabilitation projects.
Irrigation system liners for water conservation.
 |  |  |  |  |
- Irrigation ponds, canals, ditches & water reservoirs
- Mining heap leach & slag tailing ponds
- Golf course & decorative ponds
- Landfill cells, covers, & caps
- Wastewater lagoons
- Secondary containment cells/systems
- Liquid containment
- Environmental containment
- Soil Remediation
 |  |
|  |  |
Properties | Test Method | GMSH050 | GMSH075 | GMSH100 | GMSH150 | GMSH200 |
■ Thickness | ASTM D5199 | 0.50 mm | 0.75 mm | 1.00 mm | 1.50 mm | 2.00 mm |
■ Density | ASTM D1505 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
Tensile Properties |
|
|
|
|
|
|
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation | ASTM D6693 Type IV
| 7 kN/m 13 kN/m 12% 700% | 11 kN/m 20 kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% |
■ Tear Resistance | ASTM D1004 | 62 N | 93 N | 125 N | 187 N | 249 N |
■ Puncture Resistance | ASTM D4833 | 160 N | 240 N | 320 N | 480 N | 640 N |
■ Stress Crack Resistance | ASTM D5397 | 500 hrs | 500 hrs | 500 hrs | 500 hrs | 500 hrs |
■ Carbon Black Content | ASTM D1603 | 2.0% | 2.0% | 2.0% | 2.0% | 2.0% |
■ Carbon Black Dispersion | ASTM D5596 | For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 | ||||
■ Oxidative Induction Time (OIT) | ASTM D3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
■ UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 |
50% |
50% |
50% |
50% |
50% |
Dimensions |
|
|
|
|
|
|
■ Roll Width (m) |
| 7 | 7 | 7 | 7 | 7 |
■ Roll Length (m) |
| 420 | 280 | 210 | 140 | 105 |
 |  |
