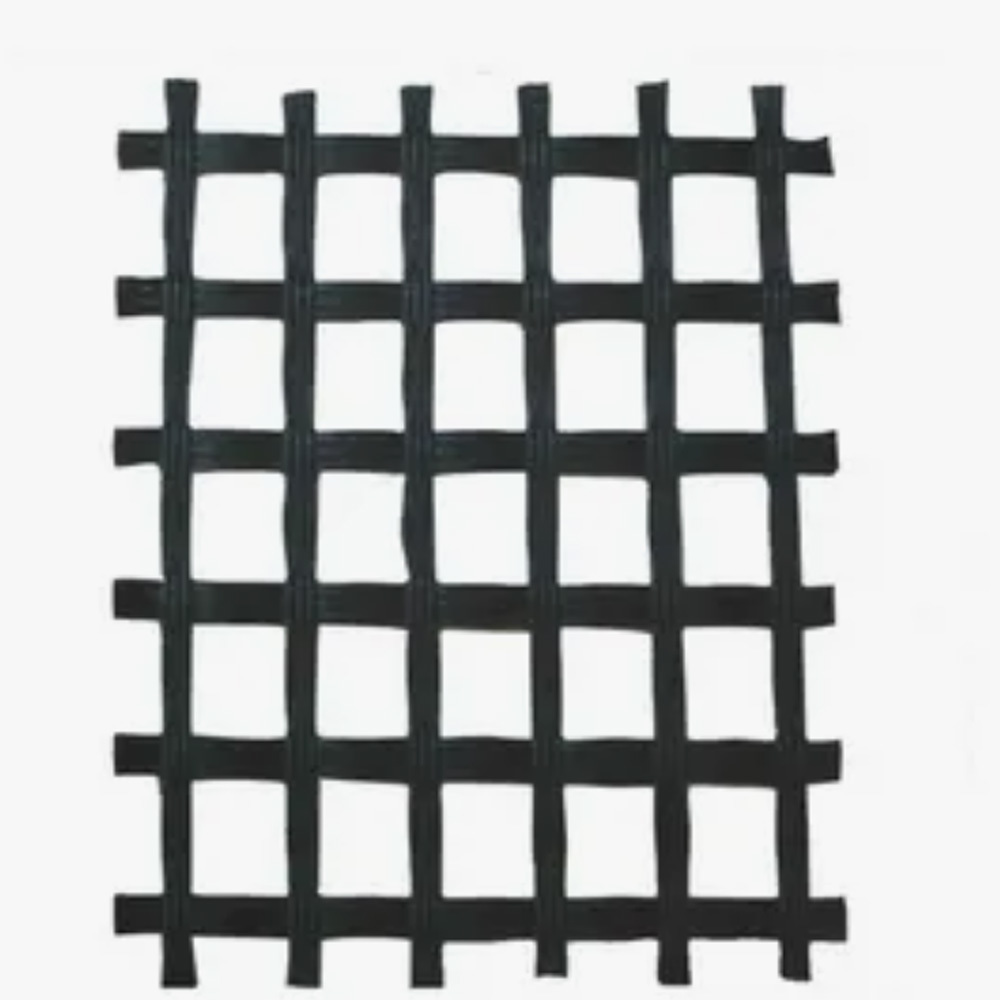

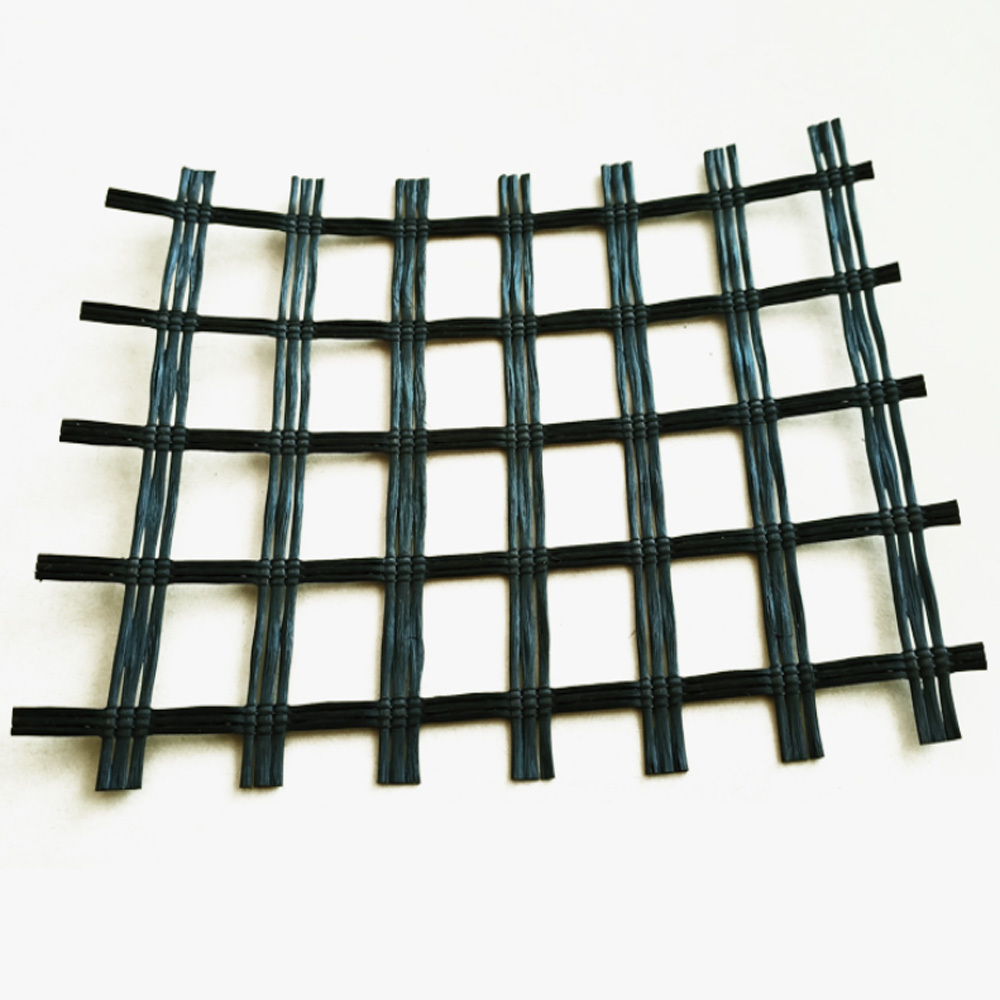

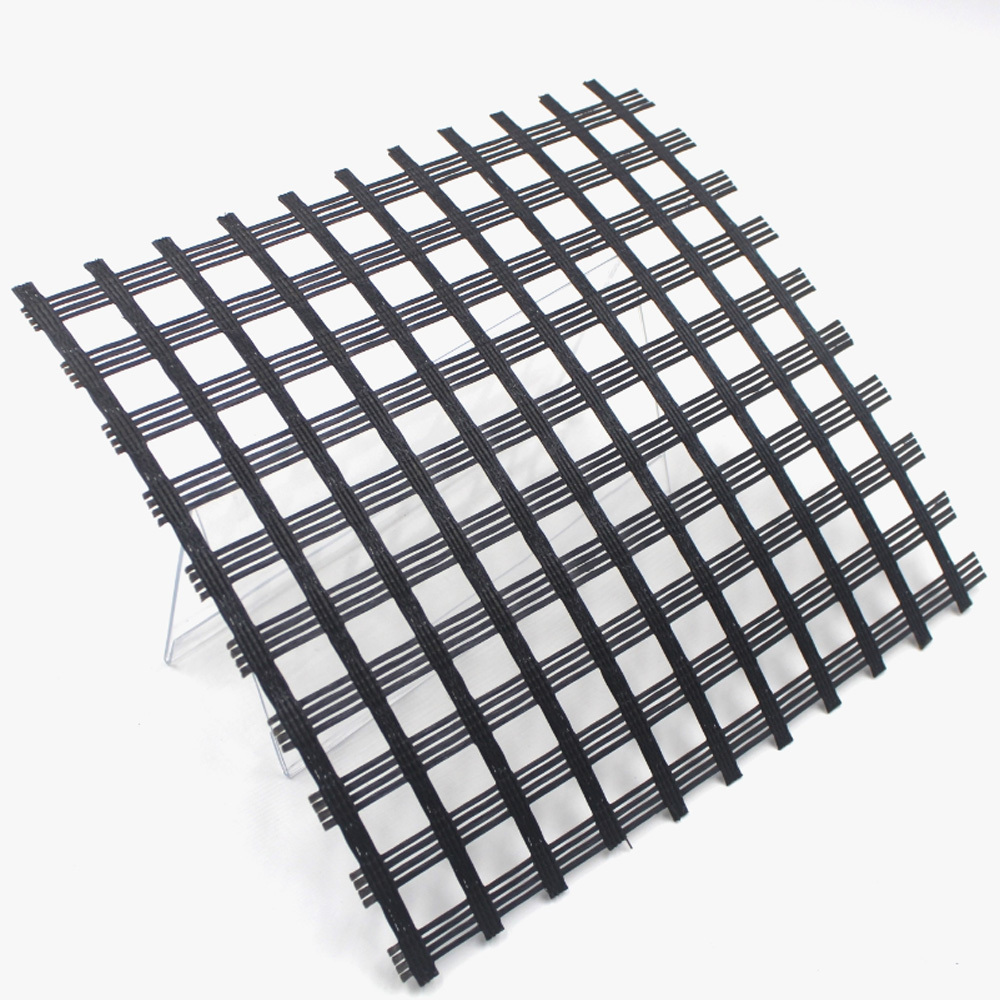

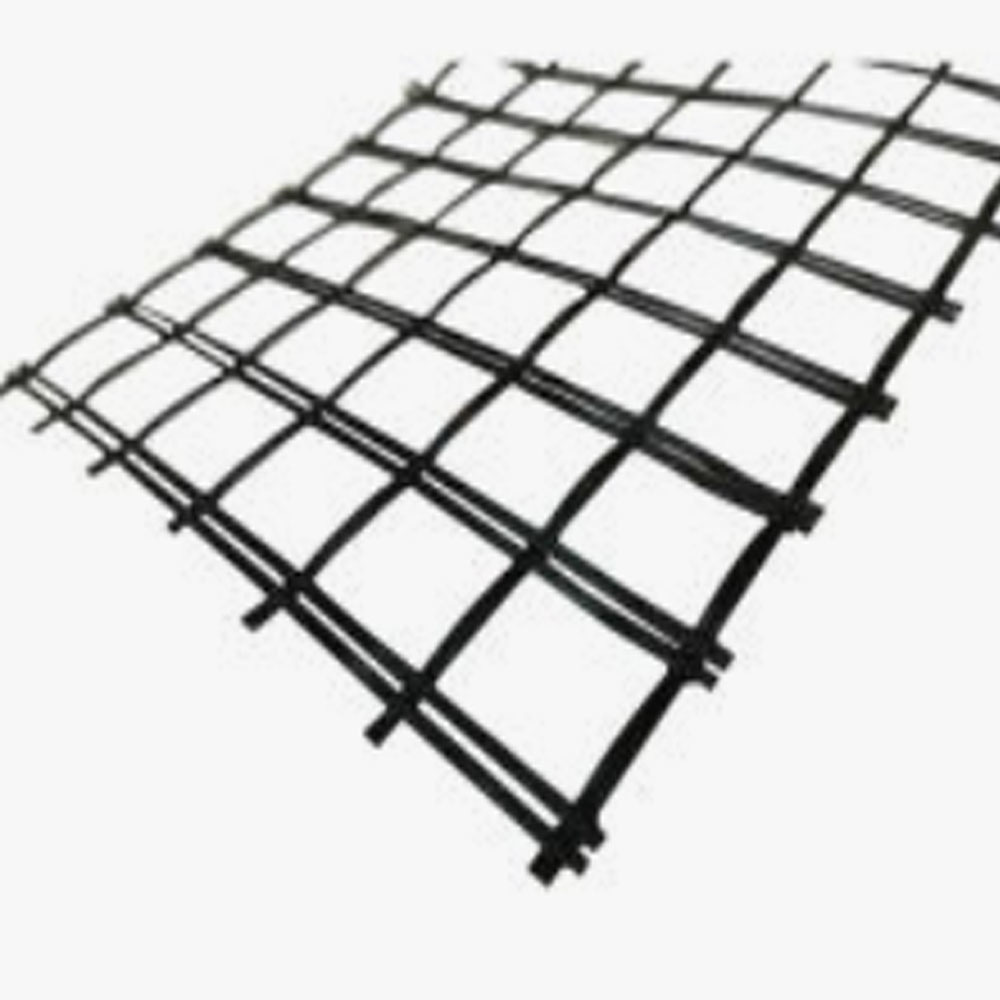

Products Description

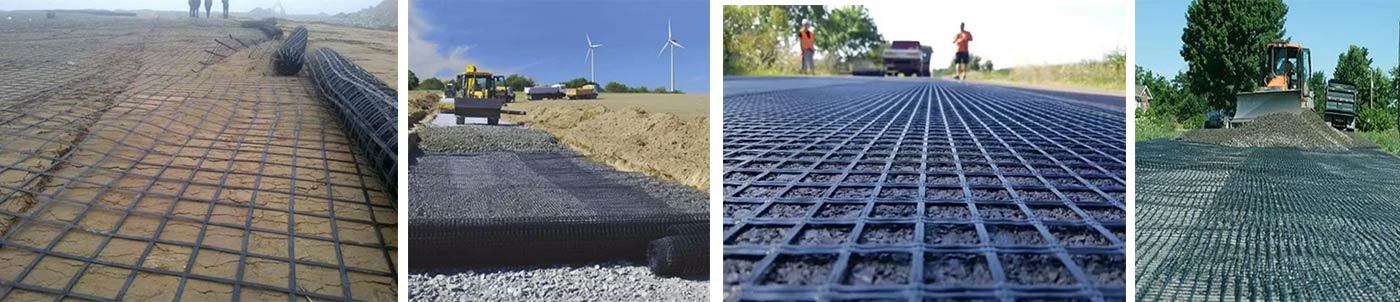

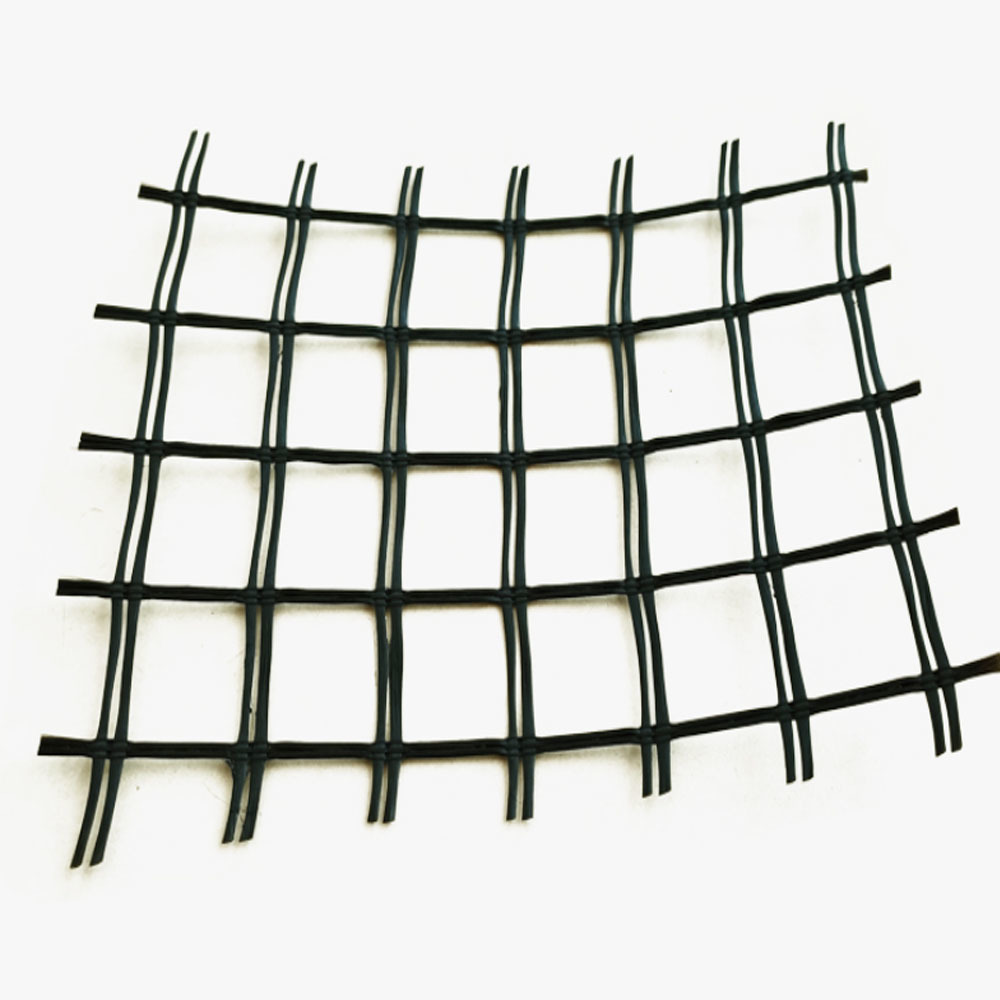

Polyester Geogrid are made from a woven matrix of excessive tenacity polyester fibres that are covered with a protective polymer coating. And strengths can be very high, with sketch values of up to viable one thousand kN/m. The electricity of a geogrid permits high quality reinforcement of embankments, steep slopes, keeping partitions and different vertical soil structures. Geogrids interlock with the soil presenting lengthy time period reinforcement and are the most least expensive approach of developing extra horizontal space. Polyester geogrids have wonderful lengthy time period creep performance.
![]() | ![]() | ![]() | ![]() |
|
![]() | ![]() | ![]() | ![]() |
1. Consistent long-term bodily properties
2.Ability to enhance any soil type
3.Low creep beneath regular load
4. High modulus
5.Easy to install
6.High pull out resistance
7.Excellent survivability to building stresses
8. Excellent soil-to-soil and aggregate-to-aggregate contact thru massive grid openings.
Item Spec | JBGS 3030 | JBGS 5050 | JBGS 8080 | JBGS 100100 | JBGS 120120 | JBGS 150150 | JBGS 200200 | JBGS 300300 | JBGS 6030 | JBGS 8030 | JBGS 10030 | JBGS 12030 | JBGS 15030 | JBGS 20030 | JBGS 40050 | |
Tensile strength ≥KN/m | weft | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | 60 | 80 | 100 | 120 | 150 | 200 | 400 |
Warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | 30 | 30 | 30 | 30 | 30 | 30 | 50 | |
Elongation ≤ | 13% | |||||||||||||||
Mesh size(mm) | 25.4×25.4 or50.8x50.8 or 76.2x76.2 |
