Products Description

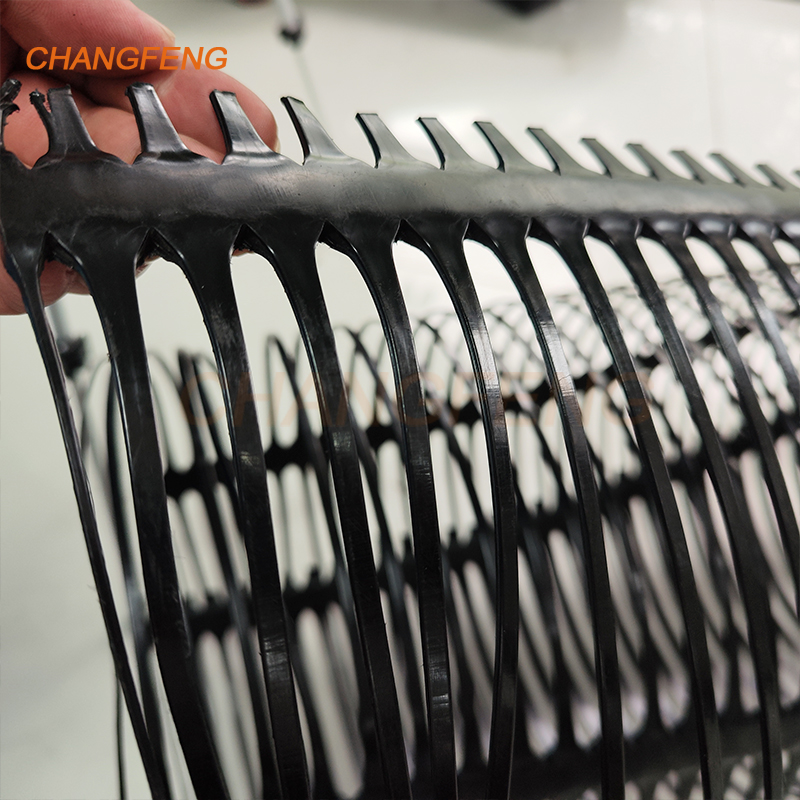

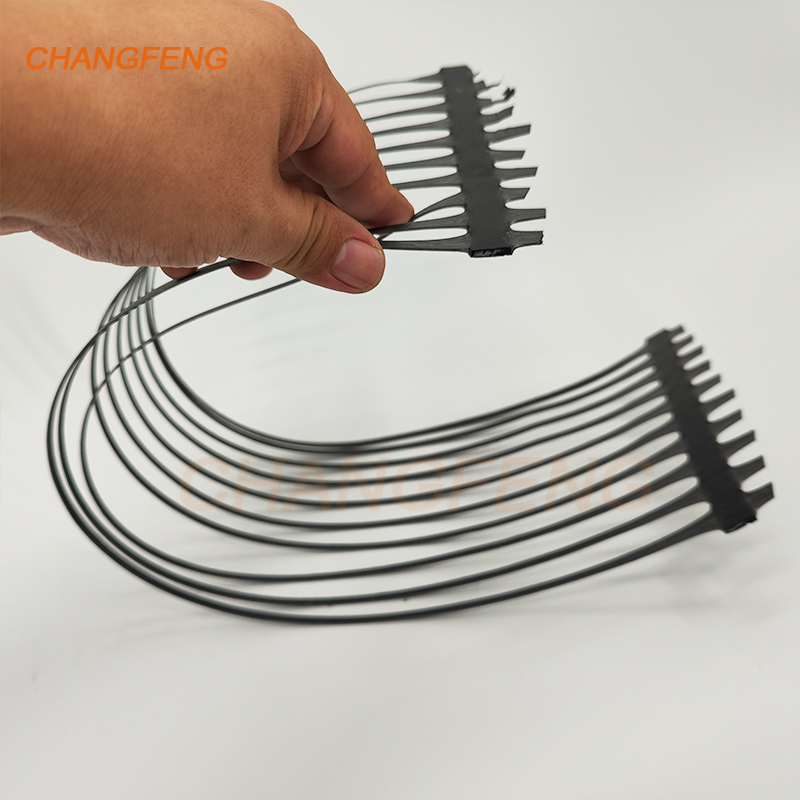

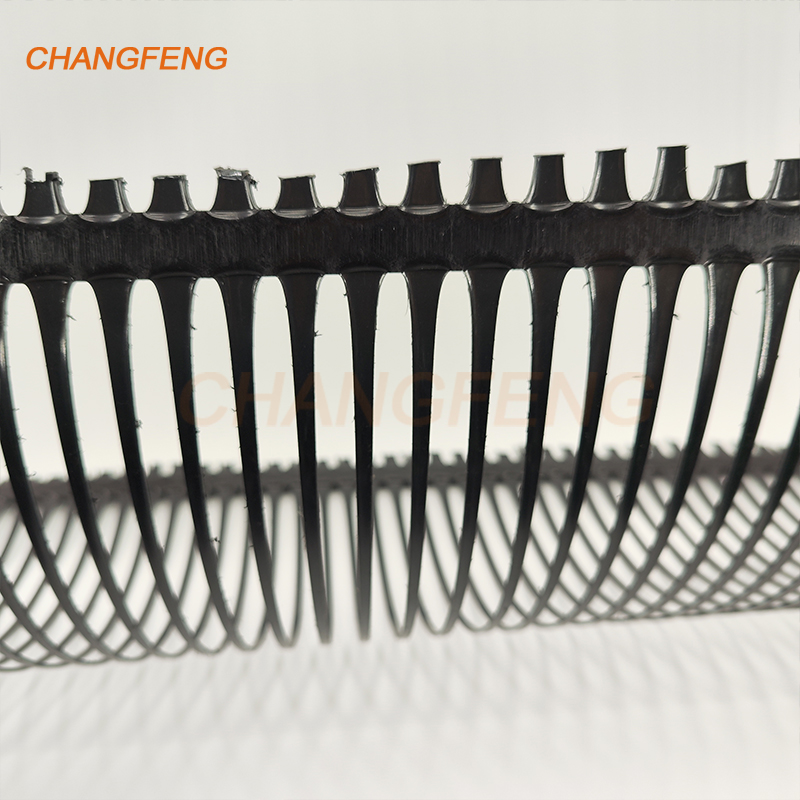

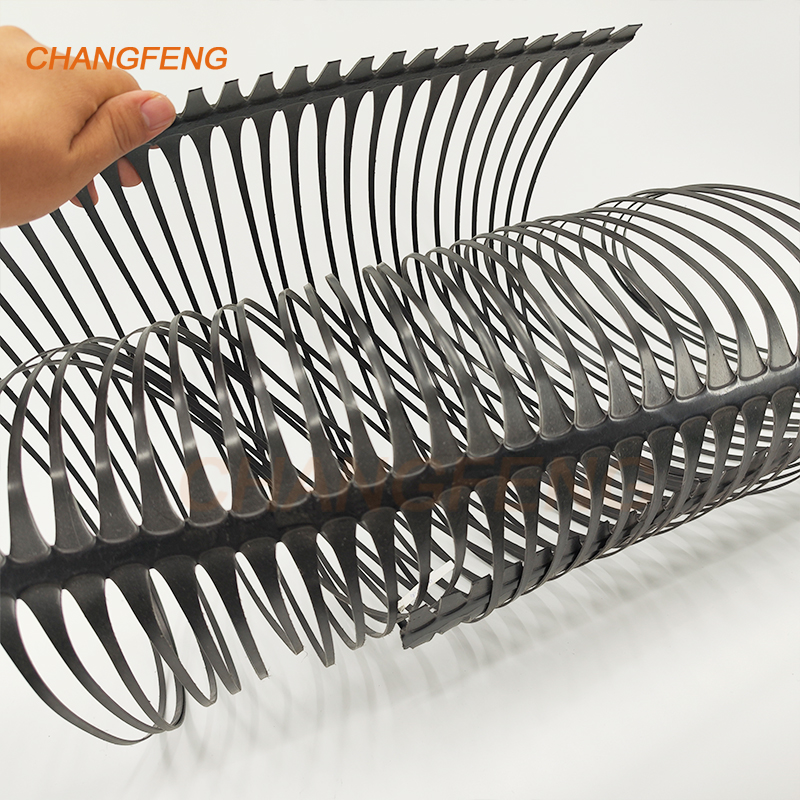

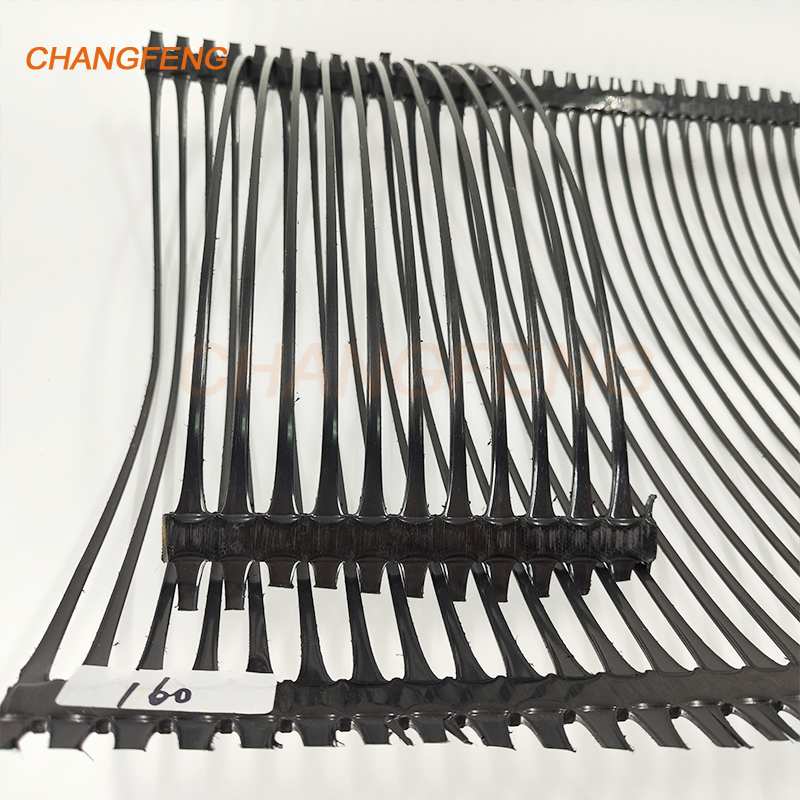

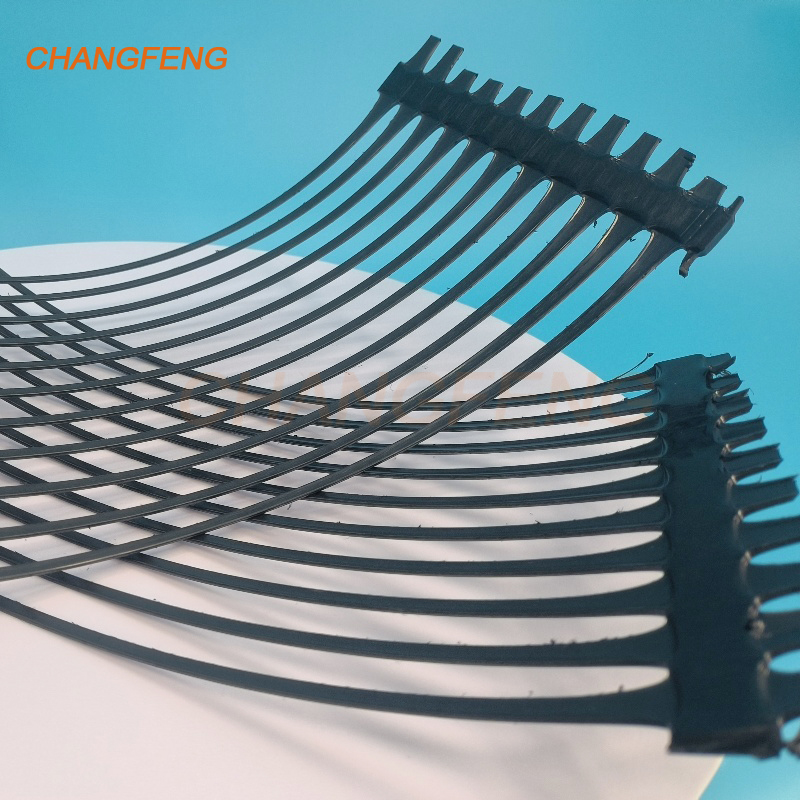

Unidirectional geogrid is a high-performance geosynthetic material designed to provide enhanced reinforcement in soil and aggregate applications. Manufactured from high-strength polypropylene or hdpe, this geogrid features a unique one-dimensional structure that effectively
distributes loads and improves stability.
Item Spec | TGDG35 | TGDG50 | TGDG80 | TGDG90 | TGDG110 | TGDG130 | TGDG160 |
Width (m) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
Tensile strength≧(Kn/m) | 35 | 50 | 80 | 90 | 110 | 130 | 160 |
Nominal Elongation ≦(%) | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
Tensile strength at 2% strain ≧(Kn/m) | 7.5 | 12 | 21 | 23.7 | 29.9 | 38 | 47 |
Tensile strength at 5% strain ≧(Kn/m) | 21.5 | 23 | 40 | 45.2 | 56.5 | 75.5 | 93 |
Item Spec | TGDG50 | TGDG80 | TGDG110 | TGDG120 | TGDG160 | TGDG200 | TGDG260 |
Width | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
Tensile strength ≥（KN/m） | 50 | 80 | 110 | 120 | 160 | 200 | 260 |
Nominal Elongation ≤（%） | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Tensile strength at 2% strain ≥（KN/m） | 12 | 26 | 32 | 36 | 45 | 56 | 94 |
Tensile strength at 5% strain≥（KN/m） | 28 | 48 | 64 | 72 | 90 | 112 | 185 |
Key Features:
High Tensile Strength: Engineered to withstand significant tensile forces, making it ideal for reinforcing soil structures.
Corrosion Resistance: Resistant to chemical and environmental factors, ensuring longevity and durability in various conditions.
Lightweight and Flexible: Easy to handle and install, allowing for efficient transportation and placement on-site.
Efficient Load Distribution: The unidirectional design allows for optimal load transfer in one direction, enhancing the overall performance of roadways, embankments, and retaining walls.

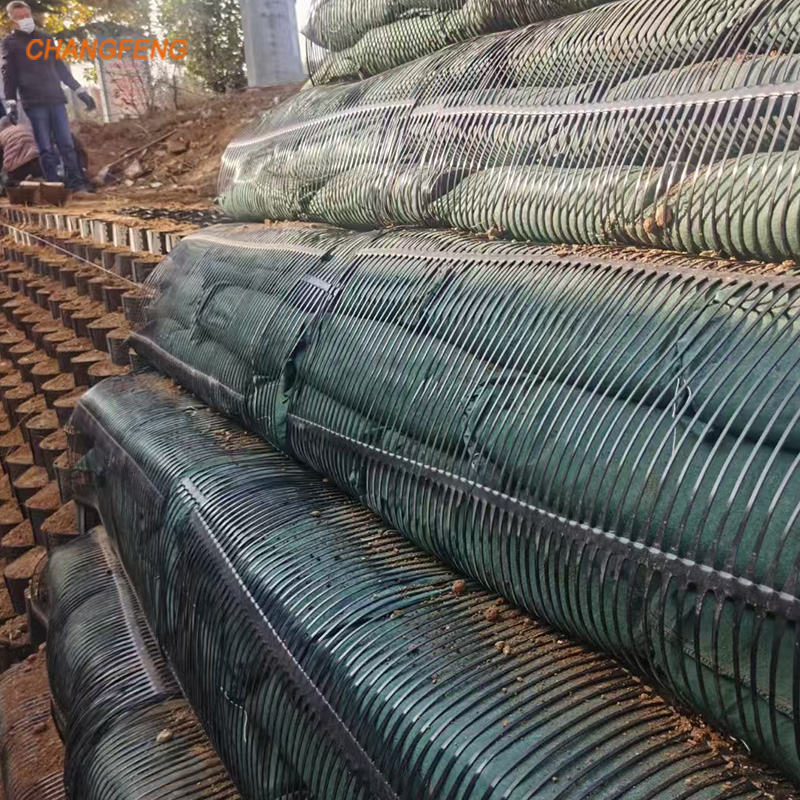

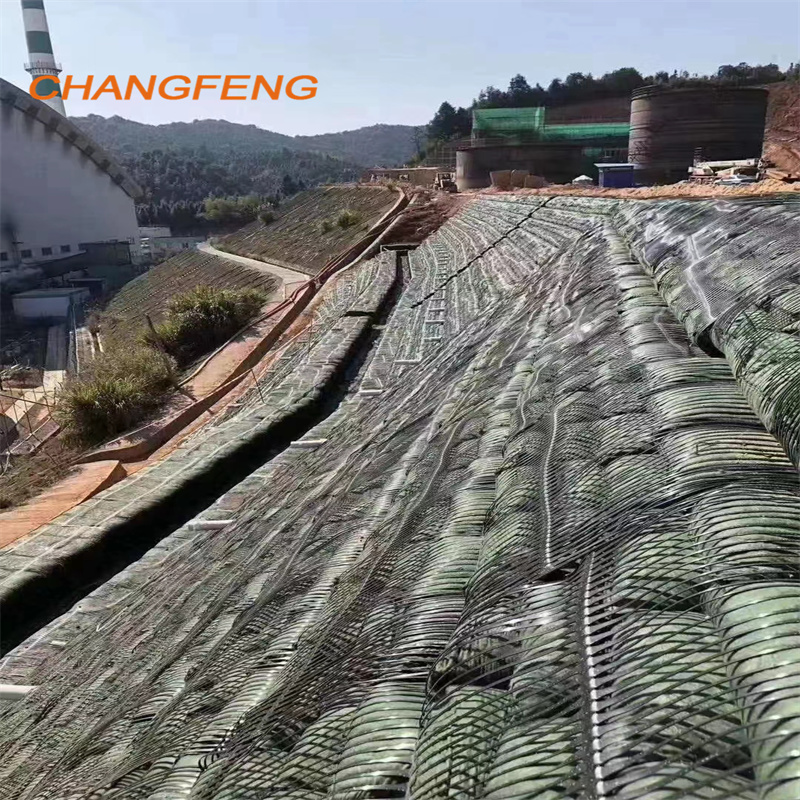

Versatile Applications: Suitable for use in road construction, railway subgrades, landfill reinforcement, and other civil engineering projects.
Unidirectional geogrid is an excellent choice for projects requiring superior structural reinforcement, ensuring stability and extending the lifespan of constructed facilities.
