Changfeng Plastic Rigid Permeable Drain Pipe for Landscaping and Greening PE Curved Network Foundation, Shoulder Drainage

Also known as: plastic blind ditch, drainage pipe, curved mesh polyethylene (PE) hard permeable pipe. The upper half of the hard permeable pipe has 2/3 small holes, and the lower half has 1/3 no holes, which can prevent secondary leakage of groundwater. It is the "permeable king" and "drainage expert" of underground drainage systems.

Send Message

Products Description

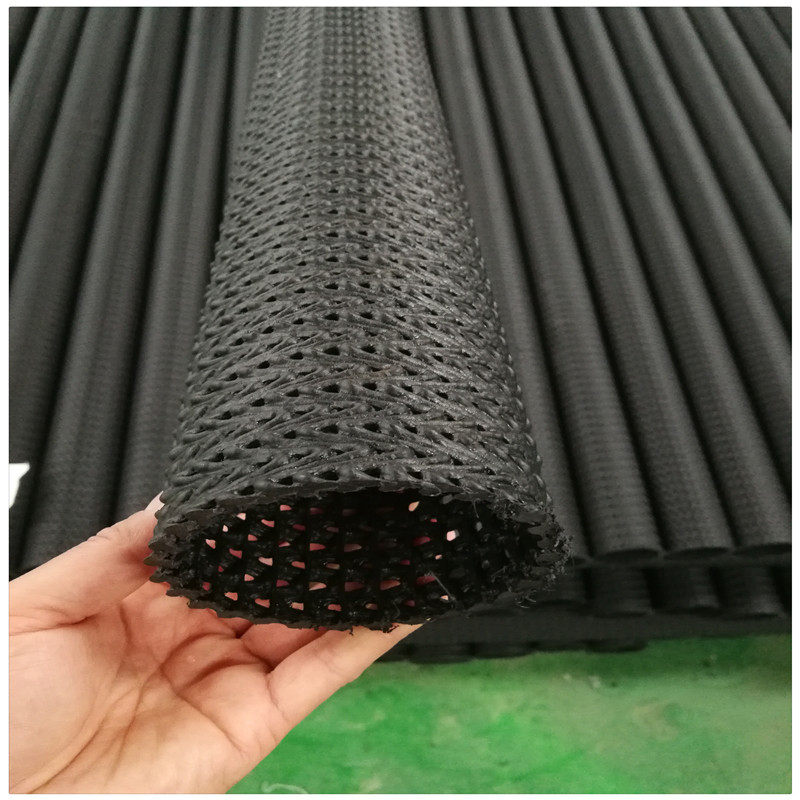

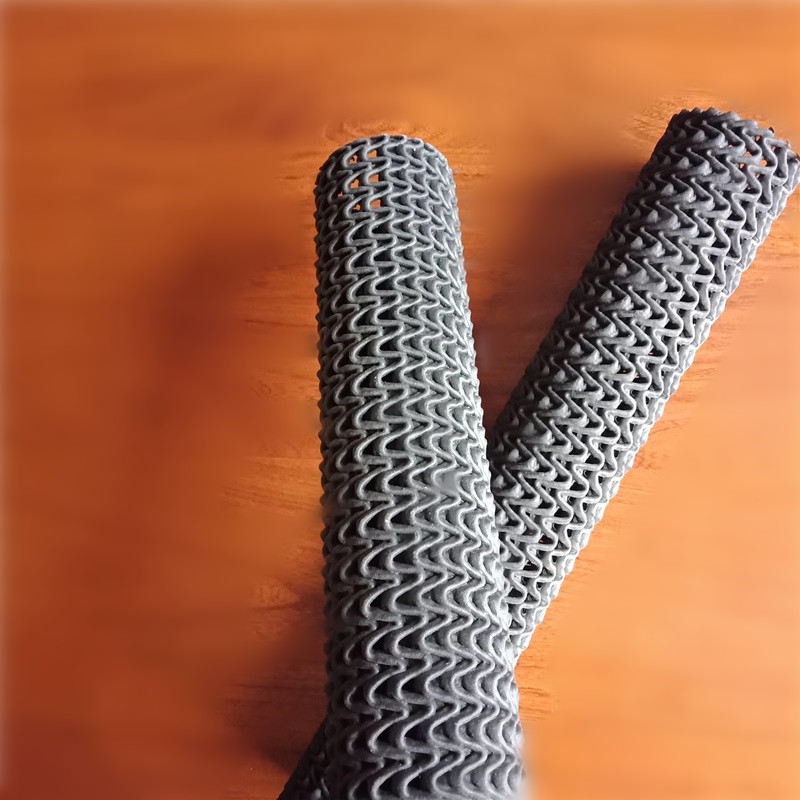

Hard permeable pipe

硬管26.jpg 硬管27.jpg

Application:

The product is applied in railway construction, highway construction, airport runways, golf courses, football fields, large lawns, landscaping, highways, landfills, slope protection and retaining walls, tunnels and other large-scale underground water diversion projects.

Feature:

▲ Lightest in weight, easy to transport and operate.
▲ Adaptable to a wide temperature range.
▲ Excellent weather resistance (anti-aging) and extremely long service life.
▲ Extremely strong impact resistance and excellent resistance to chemical corrosion.
▲ The water collection capacity is extremely strong, 5 to 10 times that of other similar products.
▲ The fluid flow rate is fast, 2 to 3 times that of steel reinforced concrete pipes or corrugated pipes of the same diameter. Quickly discharge the collected water to avoid soil erosion.
▲ The bottom is the non perforated part to prevent secondary leakage.

Specifications:

Model specifications	Specification Data		Technical Indicators			connect
Model specifications	outside diameter（mm）	length（m）	wall thickness（mm）	opening ratio（%）	Porosity（%）	type	length（mm）
JG-50	50	4	4	60	40	JG-50	100
JG-60	60	4	4.5	60	40	JG-60	120
JG-75	75	4	5	65	35	JG-75	150
JG-90	90	4	5	65	35	JG-90	150
JG-110	110	4	6	75	25	JG-110	200
JG-160	160	4	8	75	25	JG-160	250
The above are standard specifications, and other special specifications can be customized according to customer requirements
