Side Protection Erosion Control Reinforcement Geomat with Wire Mesh for Soil Stabilization

The Reinforced Geomat is a high-performance composite material made of PP mesh mat integrated with galvanized wire mesh or geogrid, designed to provide superior erosion control and soil stabilization. Its durable structure offers ample space for soil retention and promotes healthy vegetation growth, making it an ideal solution for a variety of applications. The geomat is highly malleable,adapting seamlessly to structural changes, and is easy to install, ensuring efficiency and versatility.
Send Message

Products Description

The Reinforced Geomat is a high-performance composite material made of PP mesh mat integrated with galvanized wire mesh or geogrid, designed to provide superior erosion control and soil stabilization. Its durable structure offers ample space for soil retention and promotes healthy vegetation growth, making it an ideal solution for a variety of applications. The geomat is highly malleable,adapting seamlessly to structural changes, and is easy to install, ensuring efficiency and versatility.








Key Features and Benefits:Erosion Control: The galvanized wire mesh provides exceptional resistance to corrosion, ensuring long-lasting protection against erosion in harsh environments.

Soil Stabilization: The three-dimensional structure stabilizes loose soil, reduces distortion, and enhances the stability of roadbeds, railways, and slopes.

Vegetation Growth: The open design allows plant roots to penetrate effortlessly, fostering robust growth. Once established, the turf integrates with the geomat and soil, forming a durable, green composite layer that extends 30-50cm below the surface.Reinforcement: Strengthens surfaces and prevents reflective cracks, making it ideal for road and railway construction.

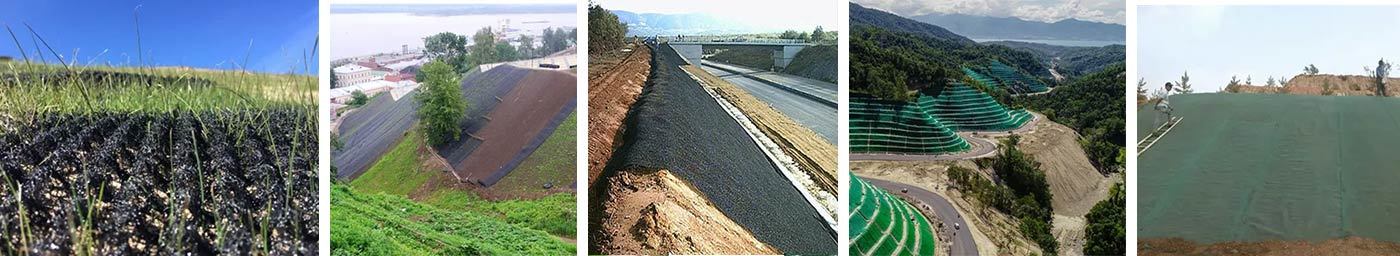

Versatility: Suitable for a wide range of applications, including slope protection, sea coast protection, channel stabilization, and retaining walls.

Eco-Friendly: Promotes natural vegetation growth while providing structural support, ensuring environmental harmony.







Specification

EM2

EM3

EM4

EM5

Weight per sq.m.≥(g/m2)

220

260

350

430

Thickness≥(mm)

10

12

14

16

Width≥(m)

2

Length≥(m)

30

Vertical tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Horizontal tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Remark: The special spec or size can be manufactured according to the demands of the contract or agreement
