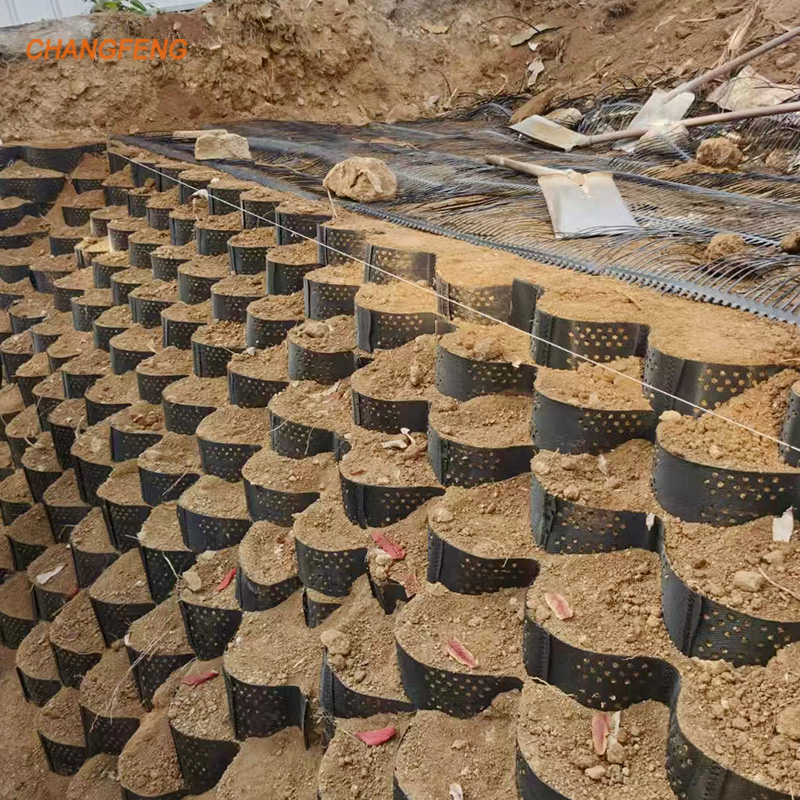

Stabilizer Base Grid 50mm 150mm Perforated Surface Geocell for Parking Lot Retaining Wall Slope Protection

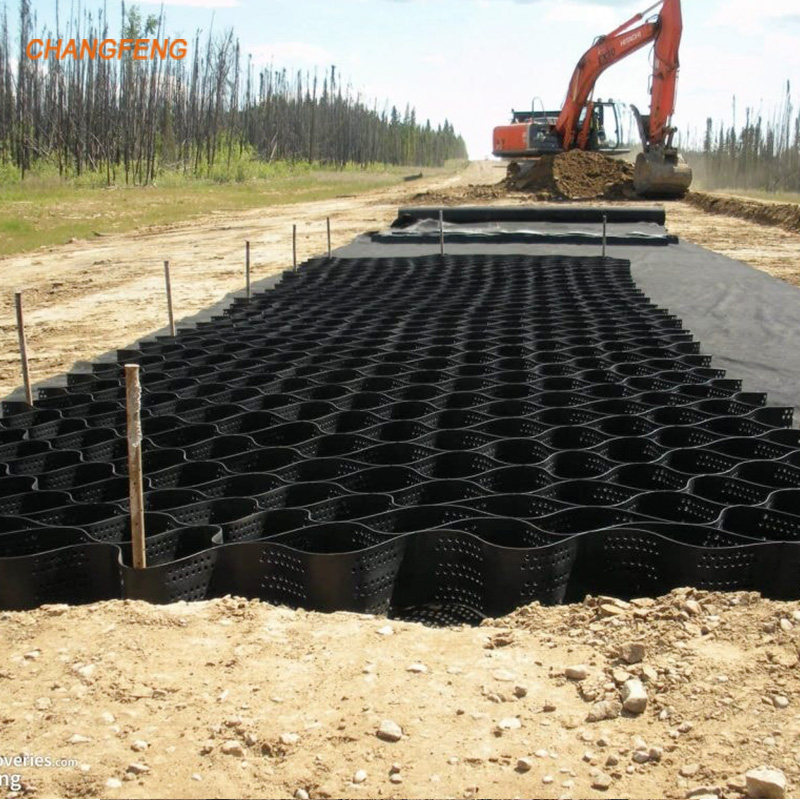

Geocell is an advanced high-strength geosynthetic material widely recognized both domestically and internationally. It features a three-dimensional mesh structure created by welding reinforced HDPE sheets. Designed to meet engineering requirements, geocells can be drilled in the diaphragm to enhance functionality. When deployed, they can be expanded into a network and filled with loose materials such as soil, gravel, or concrete, resulting in a robust structure with significant lateral confinement and stiffness.

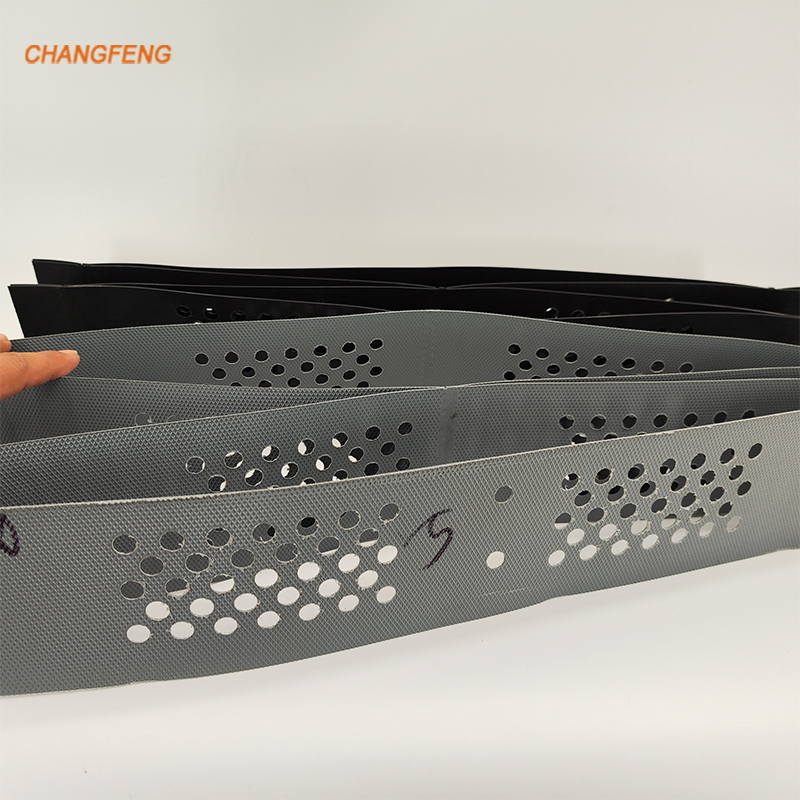

Geocells are three dimensional honeycomb mobile constructions that shape a confinement gadget when crammed with compacted soils, sand mixture concrete and other fill materials. It is extruded from excessive density polypropylene strips that are ultrasonically welded in series, the strips are improved to structure stiff (Textured and perforated) partitions of a bendy 3-d cell mattresses.

Geocells are compartment containers that can be used as a load switch platform and are joined collectively to structure a stiff foundation.
- Geocells are fine in soil particularly the place the heavy loading is expected. The confinement impact of Geocell improves the shear power of granular soil.
- The open floor sketch and excessive inside void extent of drainage cell enables the fast seize and transport of excessive water volumes, the roots of plant life and grass can take this water thru capillary motion and will assist in the increase of these plants.
Geocell prevents the lateral spreading of soil on the utility of load which will increase the electricity and stiffness property of the smooth soil.
Item Model | Height (mm) | Welding distance(mm) | Sheet thickness(mm) | Seam peel strength≥(N) | Expanded Cell Size(mm) | Expanded panel size (m) |
smooth | textured |
TGLG-100-330 | 100 | 330 | 1.1 | 1.5 | 1420 | 244X203 | 2.44X6.15 |
TGLG-150-330 | 150 | 2130 | 244X203 | 2.44X6.15 |
TGLG-200-330 | 200 | 2840 | 244X203 | 2.44X6.15 |
TGLG-100-356 | 100 | 356 | 1.1 | 1.5 | 1420 | 259X224 | 2.56X6.52 |
TGLG-150-356 | 150 | 2130 | 259X224 | 2.56X6.52 |
TGLG-200-356 | 200 | 2840 | 259X224 | 2.56X6.52 |
TGLG-100-400 | 100 | 400 | 1.1 | 1.5 | 1420 | 295X250 | 4X5 |
TGLG-150-400 | 150 | 2130 | 295X250 | 4X5 |
TGLG-200-400 | 200 | 2840 | 295X250 | 4X5 |
TGLG-100-445 | 100 | 445 | 1.1 | 1.5 | 1420 | 320X287 | 2.56X8.35 |
TGLG-150-445 | 150 | 2130 | 320X287 | 2.56X8.35 |
TGLG-200-445 | 200 | 2840 | 320X287 | 2.56X8.35 |
TGLG-100-660 | 100 | 660 | 1.1 | 1.5 | 1420 | 488X406 | 2.44X12.29 |
TGLG-150-660 | 150 | 2130 | 488X406 | 2.44X12.29 |
TGLG-200-660 | 200 | 2840 | 488X406 | 2.44X12.29 |
TGLG-100-712 | 100 | 712 | 1.1 | 1.5 | 1420 | 508X475 | 2.56X13.72 |
TGLG-150-712 | 150 | 2130 | 508X475 | 2.56X13.72 |
TGLG-200-712 | 200 | 2840 | 508X475 | 2.56X13.72 |
