300g 400g 500g Customized Fabric Price PP Pet Polyester Non-Woven Staple Fiber Geotextile for Road Reinforcement

Staple Fiber Non-Woven Geotextile is an innovative and versatile material designed for various civil engineering and landscaping applications. This product includes both PET (Polyester) Short Fiber Non-Woven Geotextile and PP (Polypropylene) Non-Woven Geotextile, providing excellent performance and durability.
Send Message

Products Description
Product specification
Name; Non-woven geotextiles
Thickness; 100g-800g
Length; 1-6 meters, if there is a unique measurement can be customized
Color; White, black, orange, aid customized hues

Staple Fiber Non-Woven Geotextile is an innovative and versatile material designed for various civil engineering and landscaping applications. This product includes both PET (Polyester) Short Fiber Non-Woven Geotextile and PP (Polypropylene) Non-Woven Geotextile, providing excellent performance and durability.

Usually, non woven geotextile refers to needle punched non-woven geotextile made from Polyester or polypropylene quick curing fiber with the diameter of 6D to 12D and size of 54-64mm.
The producing manner is to opening, carding and cluttering the quick fibers to make them move with every other, and then lapping to let the fibers normalize entangling, and at remaining needle punched with excessive speed. It is an positive and reasonably priced answer of separation, filtration, drainage, safety and reinforcement features for engineering projects.

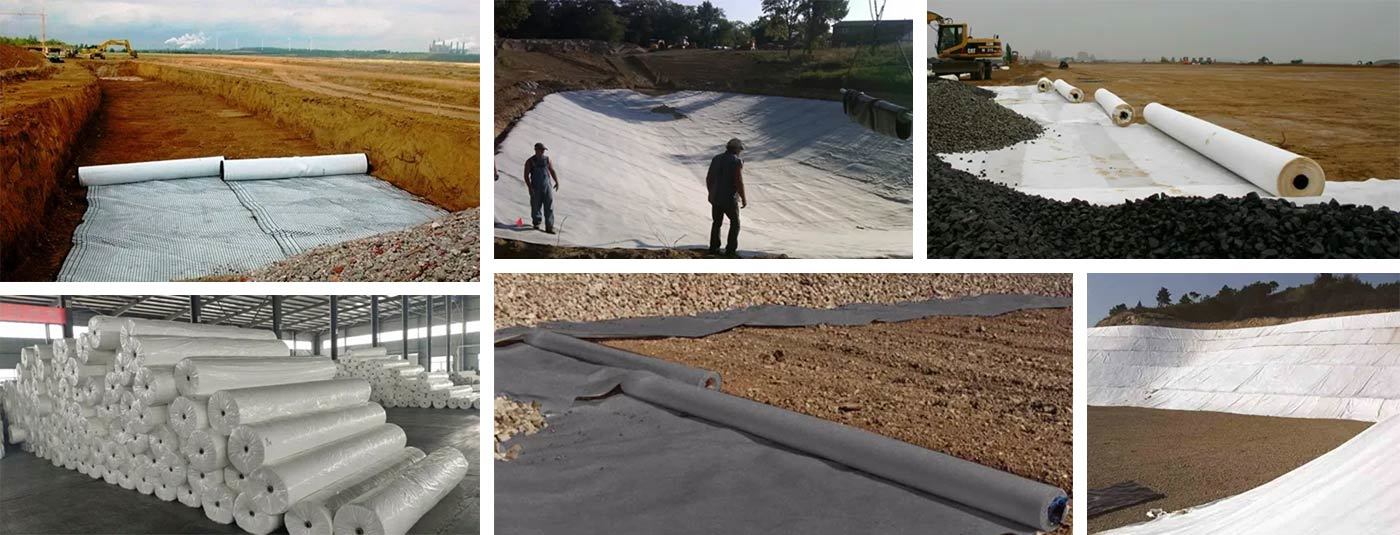

For Filtration:
When water passes from a fine-grained to a coarse grained layer, Non woven Geotextile can maintain best particles well. For an example, when water flows from a sandy soil into a Geotextile wrapped gravel drain.
For Separation:
It can separate two layers of soil with special bodily properties. For an eample, the separation of street gravel from smooth sub-base materials.
For Drainage:
It can drain liquid or gasoline from the airplane of the fabric, which leads to draining or venting of the soil. For an example, the fuel vent layer in a landfill cap.
For Reinforcement:
It can enhance the load bearing ability of a precise soil structure. For an example, the reinforcement of a keeping wall.

Properties

Test Method

Unit

GXSF150

GXSF200

GXSF300

GXSF400

GXSF500

GXSF600

GXSF800

GXSF1000

Tensile Strength(MD/TD)

ASTM D4595

kN/m

8

11

20

24

28

34

48

50

Tensile Elongation(MD/TD)

ASTM D4595

%

50

60

60

60

60

60

60

60

Grab Tensile Strength(MD/TD)

ASTM D4632

N

520

700

1100

1500

1800

2200

2800

3000

Grab Elongation(MD/TD)

ASTM D4632

%

50

50

60

60

60

60

60

60

Trapezoidal Tear Strength(MD/TD)

ASTM D4533

N

220

330

400

480

560

620

860

880

CBR Burst Strength

ASTM D6241

N

1700

2400

3200

4300

5300

6000

6800

7000

Pore Size O90

ASTM D4751

µm

90

85

80

75

70

60

55

50

Water Flow Q100

ASTM D4491

L/m2/s

160

145

140

120

105

95

90

80

Weight

ASTM D5261

g/m2

150

200

300

400

500

600

800

1000
